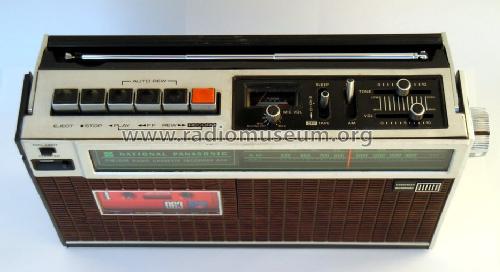

National Panasonic FM/AM Radio Cassette Recorder 444 RQ-444SD

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

  • Year
  • 1972 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238023

 Technical Specifications

  • Number of Transistors
  • 21
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Power out
  • 1.5 W (2 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: National Panasonic FM/AM Radio Cassette Recorder 444 RQ-444SD - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 300 x 180 x 80 mm / 11.8 x 7.1 x 3.1 inch
  • Notes
  • National Panasonic RQ-444SD.

  • Net weight (2.2 lb = 1 kg)
  • 2.9 kg / 6 lb 6.2 oz (6.388 lb)
  • Author
  • Model page created by Wilfried Hofmüller. See "Data change" for further contributors.
