• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 229044

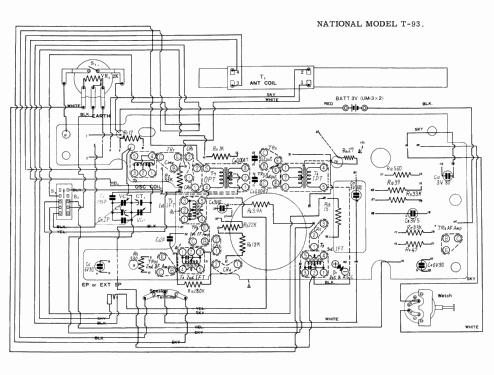

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA102 2SA102 2SA102 2SB175 2SB178 2SB178 OA90

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch

• Power out
• 0.09 W (0.12 W max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: National Portalarm 6-Transistor T-93 - Panasonic, Matsushita,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 130 x 33 x 80 mm / 5.1 x 1.3 x 3.1 inch

• Notes

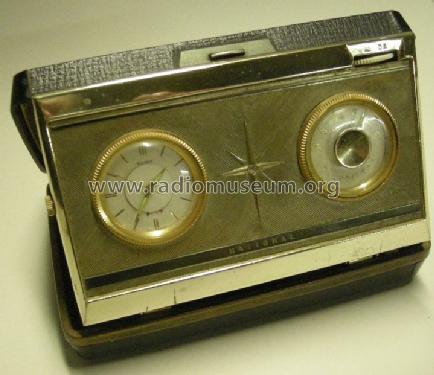

• National T-93, radio with alarm clock (Seiko movement).
  See also the similar model Portalarm without model number.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
