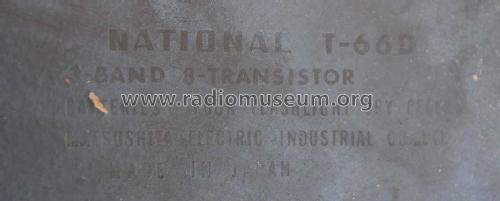

National 3 Band 8 Transistor T-66D
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153145
- Number of Tubes
- 0
- Valves / Tubes
- unknown_Tube unknown_Tube
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / D: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

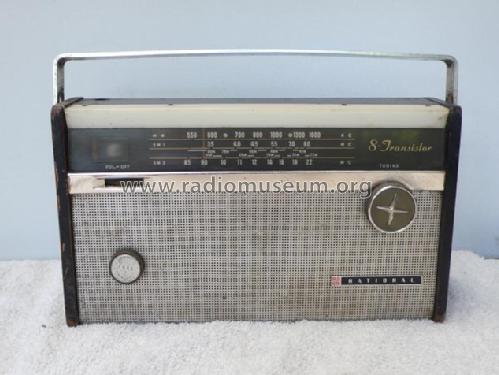

- Model: National 3 Band 8 Transistor T-66D - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 290 x 200 x 80 mm / 11.4 x 7.9 x 3.1 inch
- Notes
-
Frequency range:
BC (MW): 550 - 1600 kHz
SW1: 3.5 - 8 MHz
SW2: 8.5 - 22 MHzSee also T-66 with different SW band range.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Author
- Model page created by José Manuel Silvestre. See "Data change" for further contributors.
