National 8-Transistor 2-Band T-26U
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 220451
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Batteries / addl. power jack / 4 x 1.5 / DC 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National 8-Transistor 2-Band T-26U - Panasonic, Matsushita,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 158 x 90 x 46 mm / 6.2 x 3.5 x 1.8 inch
- Notes
-
National 8-Transistor 2-Band radio.

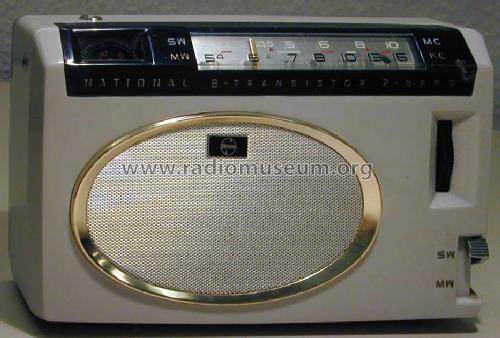

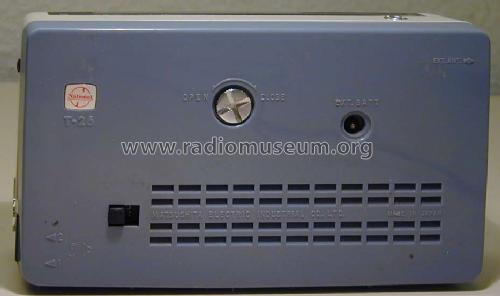

ABS cabinet with oval metal speaker grill, full size leather case and screw in type SW rod antenna. Jacks for 2 earphones, external wire antenna and AC adaptor.
SW range: 3.9 - 10 Mc (76.6 - 30.0 m).
Compare with slightly different SW coverage type T26T.
- Net weight (2.2 lb = 1 kg)
- 0.8 kg / 1 lb 12.2 oz (1.762 lb)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
