• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 190459

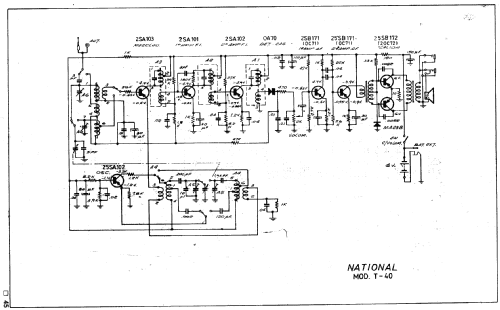

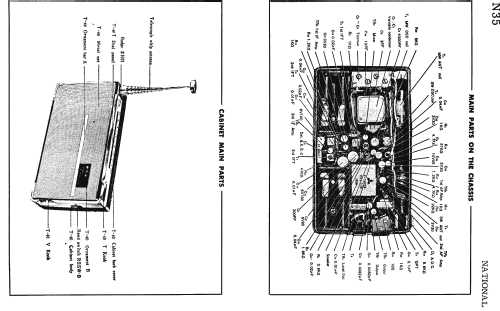

Click on the schematic thumbnail to request the schematic as a free document.

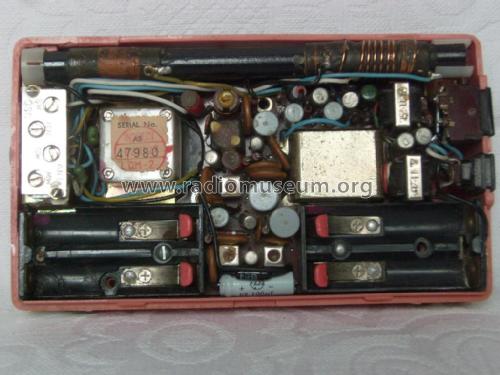

• Number of Transistors
• 8

• Semiconductors
• 2SA102 2SA103 2SA101 2SA102 2SB171 2SB171 2SB172 2SB172 OA70 MA23

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National 2-Band 8-Transistor T-40 - Panasonic, Matsushita,

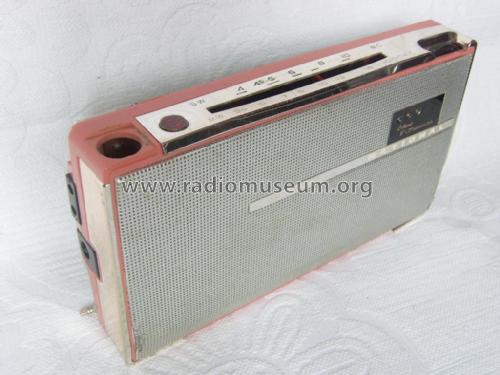

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 156 x 90 x 34 mm / 6.1 x 3.5 x 1.3 inch

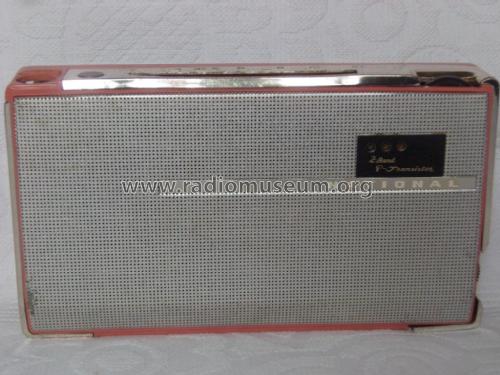

• Notes

• Three rhinestones on the front badge.

  Another transistor line-up:

  MC102 MC103 MC101 MC102 OC71 OC71 OC72 OC72

• Net weight (2.2 lb = 1 kg)
• 0.460 kg / 1 lb 0.2 oz (1.013 lb)

• Author
• Model page created by Fabio Zannier. See "Data change" for further contributors.

• Other Models

• Here you find 3036 models, 2812 with images and 630 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
