National Transistor Phonograph FG-740DU
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1965 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 234094
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage

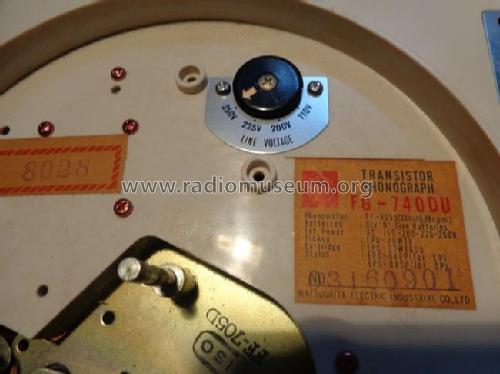

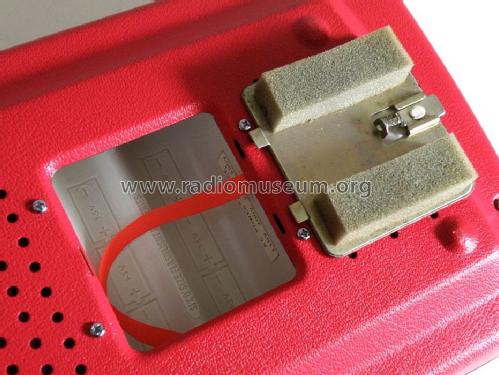

- Line / Batteries (any type) / 110-200; 225-250 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Transistor Phonograph FG-740DU - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 105 x 220 mm / 11.8 x 4.1 x 8.7 inch
- Notes
-

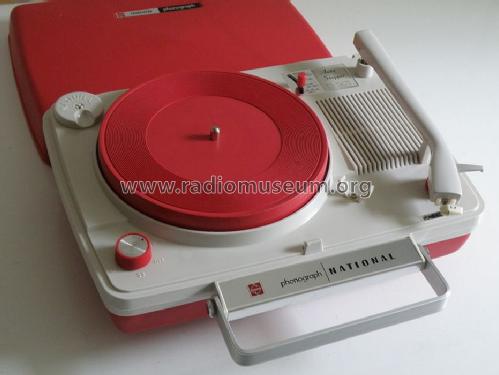

National 3-Speed (33, 45, 78 rpm) Portable Transistor Phonograph Model FG-740DU.
Plays 7", 10" and 12" records, removable Lid.
Pickup: EPU-76WTV, Cartridge: EPC-27WTGS5, Stylus: EPS-04LP for LP ans EPS-04SP for SP.
Made in Japan.
- Net weight (2.2 lb = 1 kg)
- 2.750 kg / 6 lb 0.9 oz (6.057 lb)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
