E52
Maxim; Aarau
- Country
- Switzerland
- Manufacturer / Brand
- Maxim; Aarau
- Year
- 1923/1924
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12251

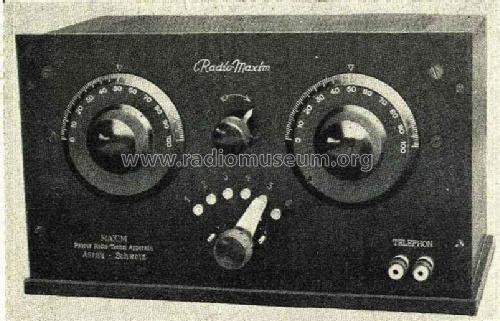

Scan by courtesy of member Hansjörg Nipp.
Scan by courtesy of member Hansjörg Nipp.
- Number of Tubes
- 3
- Valves / Tubes
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 4 & 80 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: E52 - Maxim; Aarau
- Notes
- Inserat/Bild "Radio" [392301] Juni 1923: 1-, 3- & 6-Rö-App. Otto Kippes: Bild:"Der praktische Radioamateur", Franckh'sche VB Stuttgart. Text: 900-4500 m; var.Kopplung, Heizwiderstand, Drehko, Stufenschalter f. Grobabst.
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- Der praktische Radioamateur (1. Auflage, 1923, S.197)
