• Country
• Germany

• Manufacturer / Brand
• Maximal (Marke? / brand?)

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225008

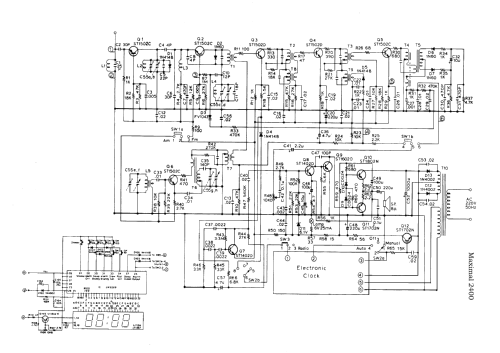

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• ST1402 ST1402 ST1602 ST1702 ST1702 LM8360 ST1502 ST1502 ST1502 ST1502 ST1502 ST1502 ST1802 ST1802

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Clock Radio FM/AM LED 2400 - Maximal Marke? / brand?

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 295 x 85 x 145 mm / 11.6 x 3.3 x 5.7 inch

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
