• Country
• Germany

• Manufacturer / Brand
• Maximal (Marke? / brand?)

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 262778

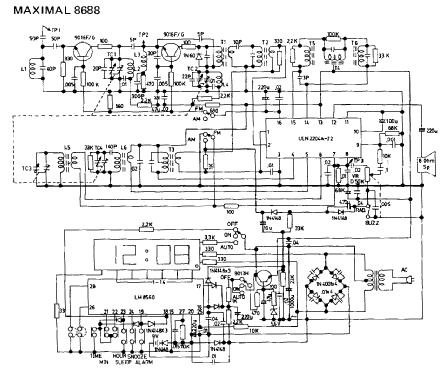

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• 9013 9016 9016 LM8560 ULN2204

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 & 1 x 9 for Clock Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

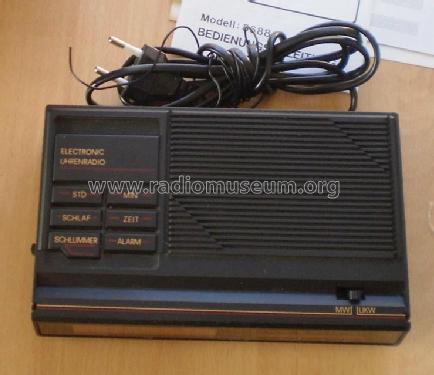

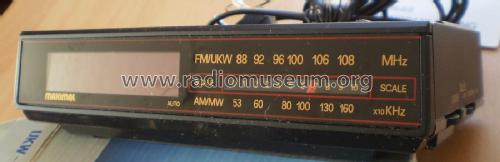

• Model: UKW-MW Electronic Uhrenradio 8688 - Maximal Marke? / brand?

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 180 x 48 x 110 mm / 7.1 x 1.9 x 4.3 inch

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 30 models, 28 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Maximal (Marke? / brand?)
