Ensemble TV 90ACI BBO 826
MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
- Country
- Belgium
- Manufacturer / Brand
- MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 354384
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- PCC84 PCF80 EF80 EF80 EF80 PL83 EF85 EF80 EF85 EF80 PCL82 PCF80 PCL82 PABC80 PCF80 PCF80 PL36 PY81 EY86 AW53-80 or AW43-80
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Ensemble TV 90ACI BBO 826 - MBLE, Manufacture Belge ... -
- Notes
-
Sold as kit
Only VHF
- Literature/Schematics (1)

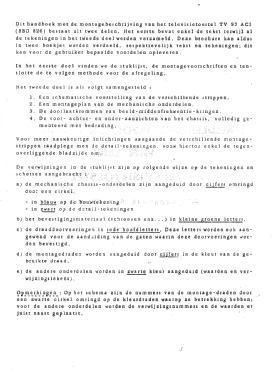

- -- Original-techn. papers.
