Ontvanger AM FM P.T. 725
MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
- Country
- Belgium
- Manufacturer / Brand
- MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 358960

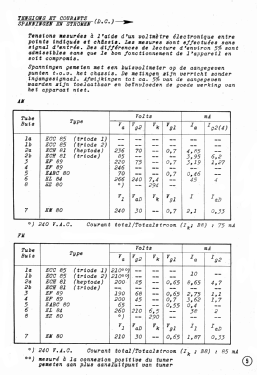

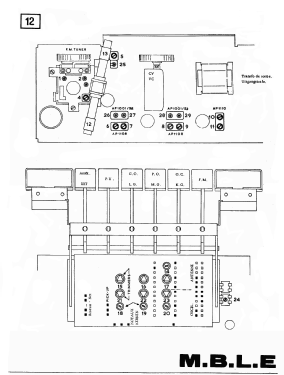

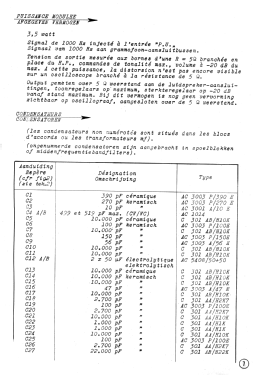

Q = original service manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 6 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Ontvanger AM FM P.T. 725 - MBLE, Manufacture Belge ... -
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 460 x 230 x 250 mm / 18.1 x 9.1 x 9.8 inch
- Notes
-
Sold as kit
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
