• Country
• Belgium

• Manufacturer / Brand
• MBLE, Manufacture Belge ... - see also MAZDA and ADZAM

• Year
• 1966 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 107980

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC88 ECF80 ECF80 ECF80 ECF80 ECC81 ECC85 EL95 EL95 EAA91 DG7-32

• Number of Transistors

• Semiconductors
• OA85 OA202 OA214

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

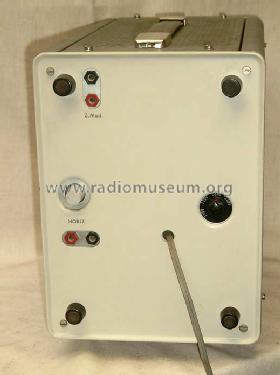

• Model: Oscilloscope BEM005 - MBLE, Manufacture Belge ... -

• Dimensions (WHD)
• 200 x 260 x 350 mm / 7.9 x 10.2 x 13.8 inch

• Notes
• Vertical Amplifier: 0-4 MHz (- 3 dB), sold in Kit form.

• Price in first year of sale
• 6,480.00 BFr

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)

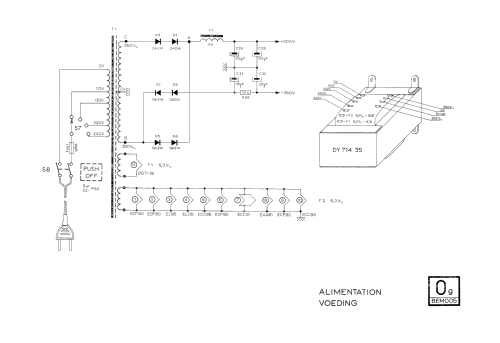

• -- Schematic

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
