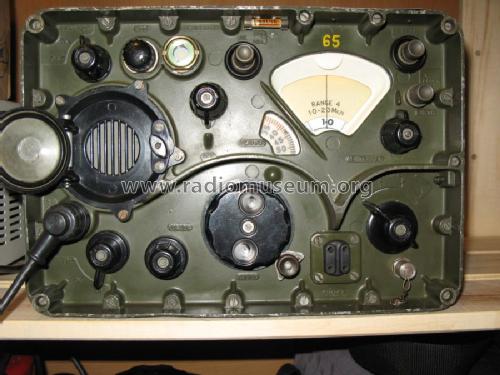

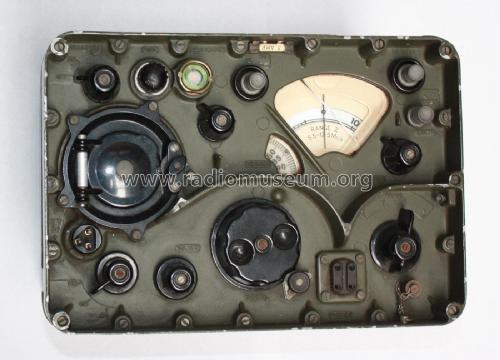

Reception Set R209 MK II
MILITARY U.K. (different makers for same model)
- Country
- Great Britain (UK)
- Manufacturer / Brand
- MILITARY U.K. (different makers for same model)
- Year
- 1951–1954
- Category
- Military Receiver
- Radiomuseum.org ID
- 154150
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.05 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Reception Set R209 MK II - MILITARY U.K. different makers
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 310 x 215 x 230 mm / 12.2 x 8.5 x 9.1 inch
- Notes
- The R209 Mk2 reception set is an improved version of the R209 general-purpose receiver. Antenna connections for wire/rod and for dipole ca. 80 ohms, with antenna-trimmer. Frequency range in 4 bands 1,0-2,3 MHz, 2,3-5,6 MHz, 5,5-12,5 MHz, 12,0-20,0 MHz. Sigal modes AM/CW/FM. Variable BFO with audio-peak-filter at 950 Hz. The FM-mode is present because of the existing R209 circuitry, but it is rather useless. For FM reception V8 is used as an amplifier-limiter and the diode-section becomes a discriminator, but FM was never introduced in the R209 frequency-range.. There is an IF-signal-out connector, and the power input is now for a 12 volts battery . The RF-amplifier is changed to a CV131 in stead of the 1T4, and a CV284 stabilizer replaces the 9512S. The oscillator coils are modified and compensated to achieve better frequency-stability. New is a dial-lock and a 12 volts fuse-holder at the place of the spare desiccator. A further development is the R209/2/B with a choice for 4 different power sources.
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Source of data
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Santiago Lopez-Zapatero. See "Data change" for further contributors.
