• Country
• Belgium

• Manufacturer / Brand
• MBLE, Manufacture Belge ... - see also MAZDA and ADZAM

• Year
• 1976 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 161059

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

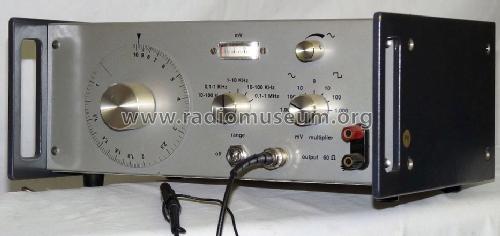

• Model: Sine Square Wave Generator BEM014 - MBLE, Manufacture Belge ... -

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 300 x 125 x 215 mm / 11.8 x 4.9 x 8.5 inch

• Notes
• Sinus Rechteckgenerator 10Hz-1MHz, Ausgang 60Ohm über BNC oder Bananenbuchsen 4mm, Anzeige der Ausgangsspannung (0-2mV) über Zeigerinstrument, Gerät wurde als Bausatz vertrieben.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 5,440.00 BEF

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
