• Country
• United States of America (USA)

• Manufacturer / Brand
• McIntosh Audio Company; Binghamton, NY

• Year
• 1950 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 270020

• Number of Tubes
• 4

• Valves / Tubes
• 12AY7 12AX7 12AX7 12AX7

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

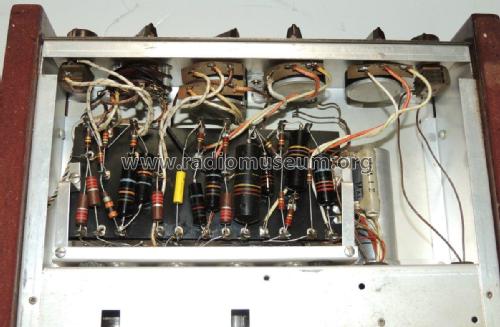

• Model: AE-1 - McIntosh Audio Company;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 11.5 x 3.75 x 9.75 inch / 292 x 95 x 248 mm

• Notes

• Preamplifier, mono; 5 inputs, phono equalization switchable 600 / 300.

• Net weight (2.2 lb = 1 kg)
• 5.4 lb (5 lb 6.4 oz) / 2.452 kg

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
