• Country
• United States of America (USA)

• Manufacturer / Brand
• McIntosh Audio Company; Binghamton, NY

• Year
• 1951 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 281279

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AX7 6J5 6J5 6L6G 6L6G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (90 W max.)

• Material
• Metal case

• from Radiomuseum.org

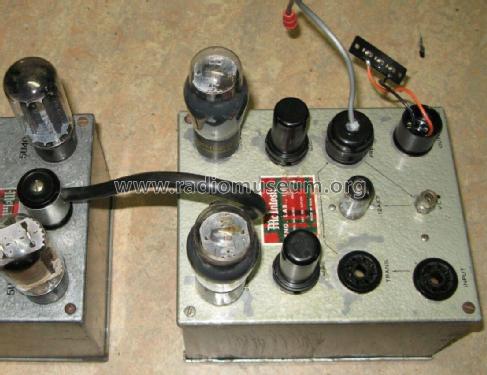

• Model: Amplifier 50W-2 - McIntosh Audio Company;

• Shape
• Chassis only or for «building in»

• Notes

• Power amplifier, mono, with Pre-Amp jack; pairs with power supply P-50-D.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
