• Country
• United States of America (USA)

• Manufacturer / Brand
• McIntosh Audio Company; Binghamton, NY

• Year
• 1953 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 256996

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 12AX7 12AX7

• Main principle
• Audio-Amplification; Hi-Fi-High End products

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / AC 6.3 & DC 280 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

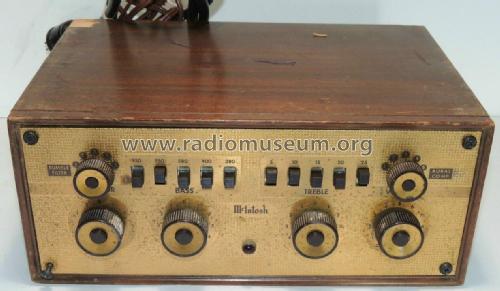

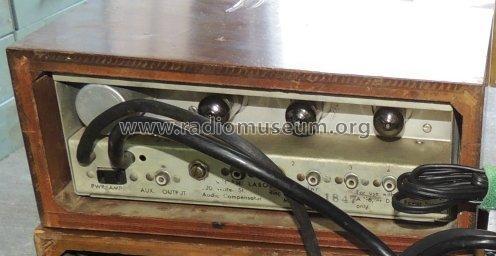

• Model: Professional Audio Compensator C-108 - McIntosh Audio Company;

• Shape
• Chassis only or for «building in»

• Notes

• McIntosh C-108 is a five channel audio preamplifier and equalizer. This unit is designed primarily to operate in conjunction with McIntosh 50W-2, 20W-2 or A-116 power amplifier or D-101 power supply.

• Price in first year of sale
• 96.50 USD

• Mentioned in
• Photofact Folder, Howard W. SAMS (Date 9-54, Set 252, Folder 10)

• Author
• Model page created by David Couture. See "Data change" for further contributors.
