• Country
• Great Britain (UK)

• Manufacturer / Brand
• McMichael Radio Ltd.; Slough

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117458

• • alternative name: McMichael, Leslie

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ACTH1 ACVP2 AC2/PenDD UU4

• Main principle
• Superheterodyne (common); ZF/IF 128,5 kHz; 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

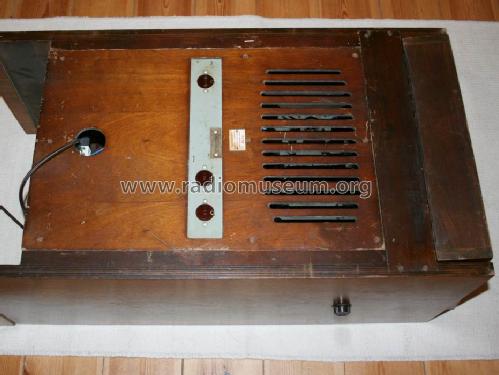

• Model: 401 - McMichael Radio Ltd.; Slough

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 460 x 850 x 345 mm / 18.1 x 33.5 x 13.6 inch

• Notes
• Console version of the 371, using the same chassis.
  Der 401 ist die Konsolenausführung des 371, und enthält das gleiche Chassis.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Nikolaus Löwe. See "Data change" for further contributors.
