• Country
• Great Britain (UK)

• Manufacturer / Brand
• McMichael Radio Ltd.; Slough

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78520

• • alternative name: McMichael, Leslie

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AC/VP1 AC/TP AC/VP1 AC/HLDD MPT4 442BU

• Main principle
• Superhet with RF-stage; ZF/IF 128.5 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

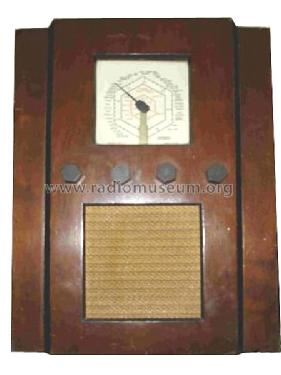

• Model: 435 [AC] - McMichael Radio Ltd.; Slough

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 15 x 20 x 10.5 inch / 381 x 508 x 267 mm

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• Trader, No. 74

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
