- Country
- Great Britain (UK)
- Manufacturer / Brand
- McMichael Radio Ltd.; Slough
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347511
-
- alternative name: McMichael, Leslie
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-115; 190-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

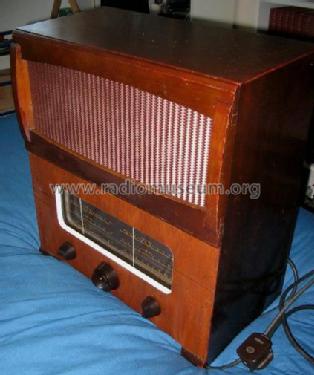

- Model: 50 XT - McMichael Radio Ltd.; Slough
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
Eight valve export version of 501 with MW(Broadcast) and seven short wave bands.
- Mentioned in
- Dated in McMichael.org.uk
- Author
- Model page created by Clive Forder. See "Data change" for further contributors.
