- Country
- Great Britain (UK)
- Manufacturer / Brand
- McMichael Radio Ltd.; Slough
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 194320
-
- alternative name: McMichael, Leslie

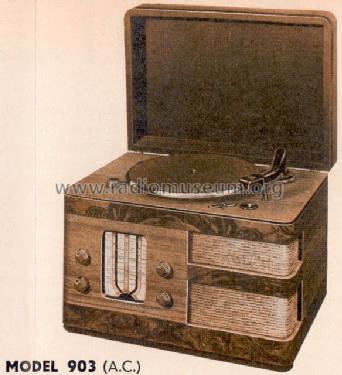

Picture from 1940 McMichael catalogue.

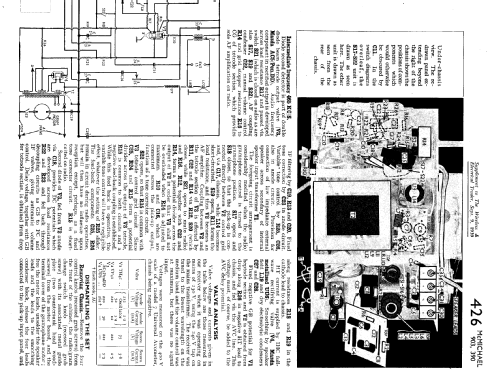

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 903 - McMichael Radio Ltd.; Slough
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 20 x 14.75 x 13.75 inch / 508 x 375 x 349 mm
- Notes
- Three band superhet table radiogram. Chassis similar to that in the McMichael 390 table radio.
- Price in first year of sale
- 14.88 GBP
- Source of data
- - - Manufacturers Literature
- Literature/Schematics (1)
- Trader sheet 426
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
