Clubman 535
McMichael Radio Ltd.; Slough
- Country
- Great Britain (UK)
- Manufacturer / Brand
- McMichael Radio Ltd.; Slough
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104422
-
- alternative name: McMichael, Leslie

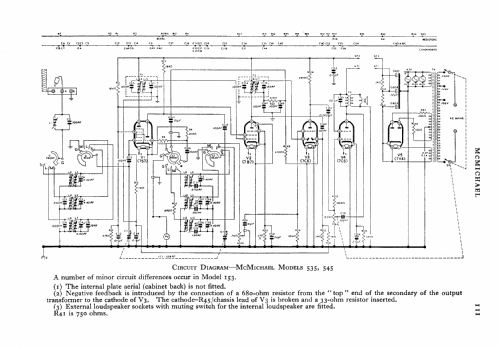

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 190-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Clubman 535 - McMichael Radio Ltd.; Slough
- Shape
- Tablemodel, low profile (big size).
- Notes
-
A table radiogram with a 3 band radio, amplifier, loudspeaker and a 3 speed Garrard RC75A autochanger. Released May 1953.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Literature/Schematics (2)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1107 dated Aug 29 1953)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
