• Country
• Great Britain (UK)

• Manufacturer / Brand
• McMichael Radio Ltd.; Slough

• Year
• 1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 303065

• • alternative name: McMichael, Leslie

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 PL83 LN309 ECL80 PL81 EY51 PY81 EF80 EF80 ECL80 EB91 ECL80 PL82 MW43-64

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: CR417A - McMichael Radio Ltd.; Slough

• Shape
• Console with any shape - in general

• Notes

• Console TV set with a 17 inch black and white 405 line CRT. 12 channel VHF GB band I/III tuner. Built-in 3 band model 114 5 valve superhet radio with its own loudspeaker and power supply.

• Literature/Schematics (1)

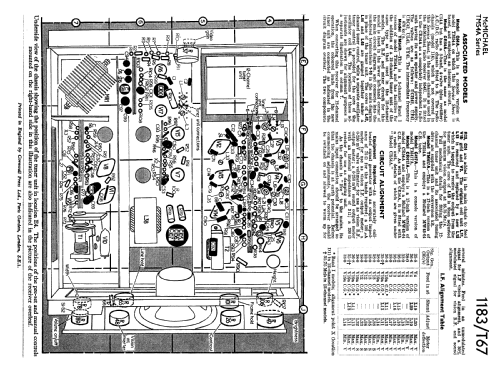

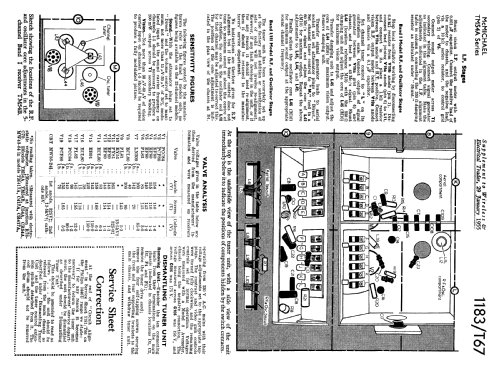

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1183/T67)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
