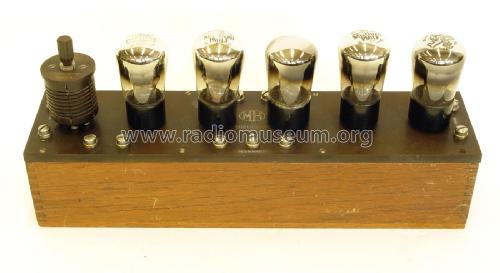

Detector / Audio Amplifier
McMichael Radio Ltd.; Slough
- Country
- Great Britain (UK)
- Manufacturer / Brand
- McMichael Radio Ltd.; Slough
- Year
- 1925 ??
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 311114
-
- alternative name: McMichael, Leslie
Collection privée (réf.: 1758)
- Number of Tubes
- 5
- Valves / Tubes
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Detector / Audio Amplifier - McMichael Radio Ltd.; Slough
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 360 x 160 x 90 mm / 14.2 x 6.3 x 3.5 inch
- Notes
-
Autodyne Detector with auto oscillator 275 m - 600 m (500 kHz - 1 MHz) and audio amplifier
- Net weight (2.2 lb = 1 kg)
- 1.7 kg / 3 lb 11.9 oz (3.744 lb)
- Author
- Model page created by Musée des Radios Museum. See "Data change" for further contributors.
