- Country
- Great Britain (UK)
- Manufacturer / Brand
- McMichael Radio Ltd.; Slough
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169161
-
- alternative name: McMichael, Leslie

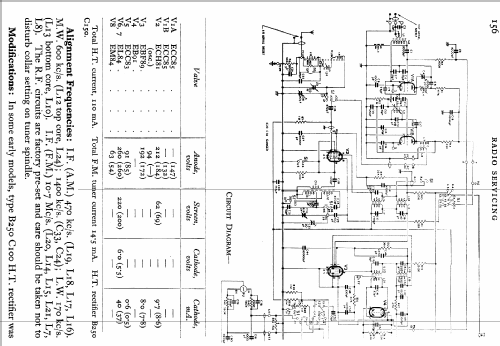

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 190-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: MS205 - McMichael Radio Ltd.; Slough
- Shape
- Console with any shape - in general
- Notes
- Stereo radiogram fitted with BSR type UR14 four speed changer unit, with TC8SM cartridge. Similar models MS204, Sobell SG671, GEC G971. Price £58.13s.3d.
- Price in first year of sale
- 59.00 GBP
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS) (RER Data Sheet R201.)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
