Norwich Masterpiece VI (6)
McMurdo Silver, Inc.(pre WW2); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- McMurdo Silver, Inc.(pre WW2); Chicago
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 114184
- Number of Tubes
- 21
- Valves / Tubes
- 6K7G 6K7G 6L7G 6J7G 6G5 6K7G 6K7G 6K7G 6J5G 6J5G 6J5G 6J5G 6B8G 6B8G 6J7G 6L7G 6J5G 6L6G 6L6G 5Z3 5Z3
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Recording phonogr.-Disc Recorder
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 3 Loudspeakers / Ø 18 inch = 45.7 cm
- Power out
- 17 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Norwich Masterpiece VI - McMurdo Silver, Inc.pre WW2;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 730 x 1230 x 480 mm / 28.7 x 48.4 x 18.9 inch
- Notes
-
Norwich is the console cabinet. Masterpiece VI is the receiver, consisting of two chassis and the speaker.

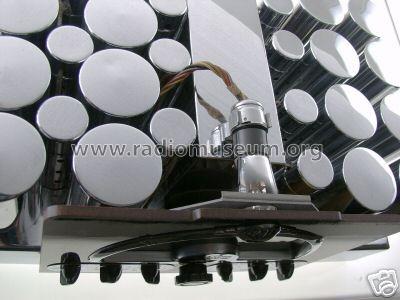

This Silver Masterpiece VI Norwich has one 18" loudspeaker (electro dynamic) from Jensen plus two Jensen High Frequency Transducers. The case of the radio itself measures 550 x 240 x 330 mm.
- Net weight (2.2 lb = 1 kg)
- 120 kg / 264 lb 5.1 oz (264.317 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
