• Country
• United States of America (USA)

• Manufacturer / Brand
• McMurdo Silver, Inc.(pre WW2); Chicago

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46909

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 58 2A7 58 58 55 58 2A5 2A5 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

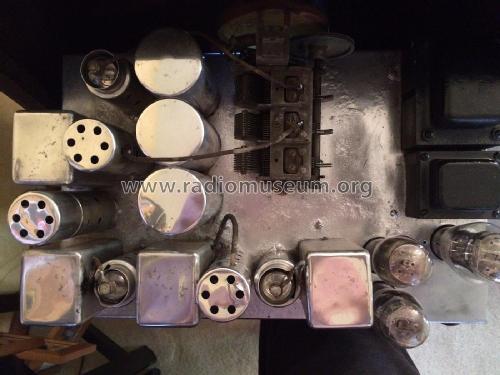

• Model: World Wide Nine - McMurdo Silver, Inc.pre WW2;

• Notes
• Push-pull audio amplifier. Built-in BFO.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 5 = ca. 1934 and before

• Other Models

• Here you find 40 models, 38 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from McMurdo Silver, Inc.(pre WW2); Chicago
