Communication Receiver R-1251V
Mechanikai Laboratórium (ML); Budapest
- Country
- Hungary
- Manufacturer / Brand
- Mechanikai Laboratórium (ML); Budapest
- Year
- 1964/1965
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 241982
- Number of Tubes
- 18
- Valves / Tubes
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Communication Receiver R-1251V - Mechanikai Laboratórium ML;
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 618 x 338 x 515 mm / 24.3 x 13.3 x 20.3 inch
- Notes
-
SW: 1,5-30 MHz / 6 band.

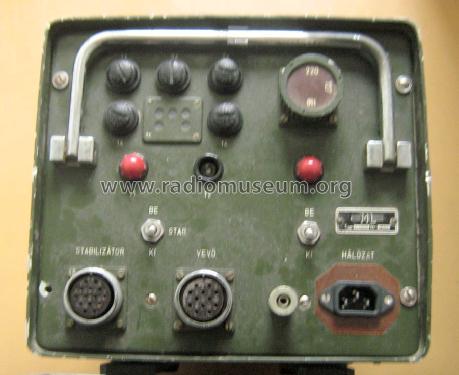

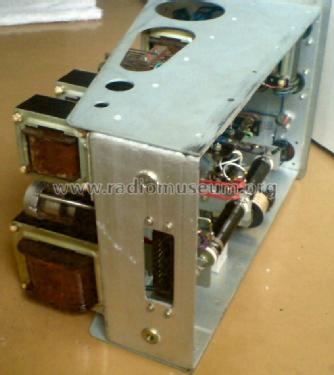

Power Supply: Dimension: 280×225×410 mm / 22 kg.
- Net weight (2.2 lb = 1 kg)
- 54 kg / 118 lb 15.1 oz (118.943 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
