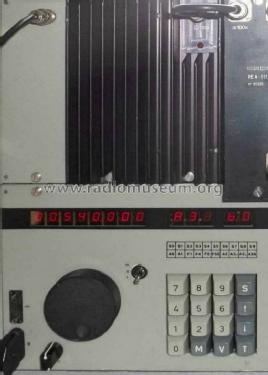

REV-251M1
Mechanikai Laboratórium (ML); Budapest
- Country
- Hungary
- Manufacturer / Brand
- Mechanikai Laboratórium (ML); Budapest
- Year
- 1984 ?
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 256117
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: REV-251M1 - Mechanikai Laboratórium ML;
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 480 x 380 x 310 mm / 18.9 x 15 x 12.2 inch
- Notes
-
Communications receiver covering 200 kHz - 30 MHz, AM, CW, USB/LSB, FM, FSK;
standard IF bandwidths 0.1/0.4/0.7/1.0/1.4/2.0/3.0/4.0/6.0 MHz and +/- 2.75/5.75 kHz (SSB mode). Digital frequency display, resolution 1 Hz.
- Net weight (2.2 lb = 1 kg)
- 26 kg / 57 lb 4.3 oz (57.269 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
