• Country
• United States of America (USA)

• Manufacturer / Brand
• Meck, John, Industries, Inc.; Plymouth (IN)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 350498

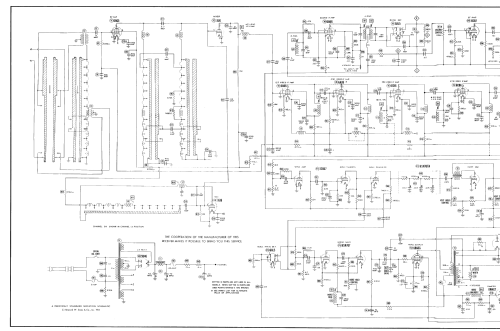

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6AG5 6J6 6AU6 6AU6 6CB6 6CB6 6AG7 or 6AC7 6AU6 6AL5 6SQ7 6V6GT 12AU7 6SN7GTA 6SN7GTA 6AL5 6SN7GTA 6BT6 or 6BG6G 6W4GT 1B3GT 5U4G 20DP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: JM-720C Ch= 9023 - Meck, John, Industries, Inc.;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Meck model JM-720C is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 9023, VHF tuner TTA-10007B and picture tube 20DP4.



• Literature/Schematics (1)

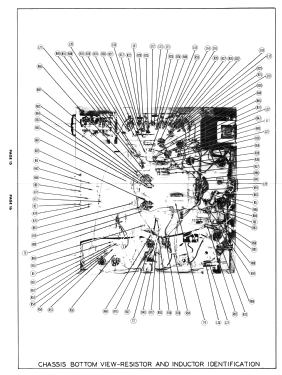

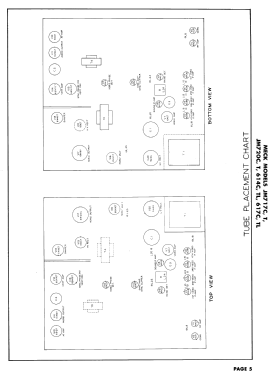

• Photofact Folder, Howard W. SAMS (Set 148, folder 11, dated 10-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 126 models, 86 with images and 90 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Meck, John, Industries, Inc.; Plymouth (IN)
