Mediator ZV3310
Medialux AG; Zürich
- Country
- Switzerland
- Manufacturer / Brand
- Medialux AG; Zürich
- Year
- 1954 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 296688
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- - This model requires external speaker(s).

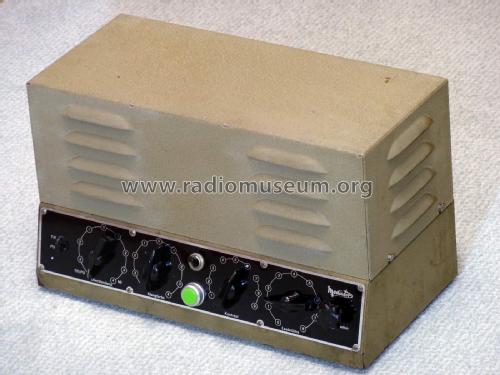

- Material
- Metal case
- from Radiomuseum.org

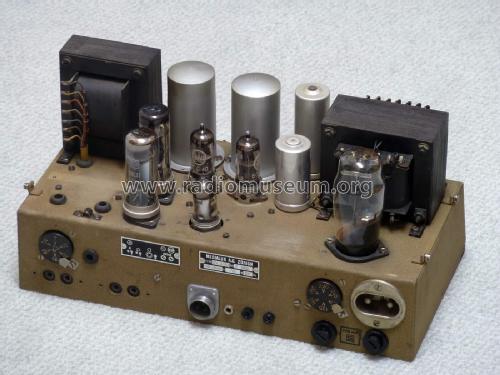

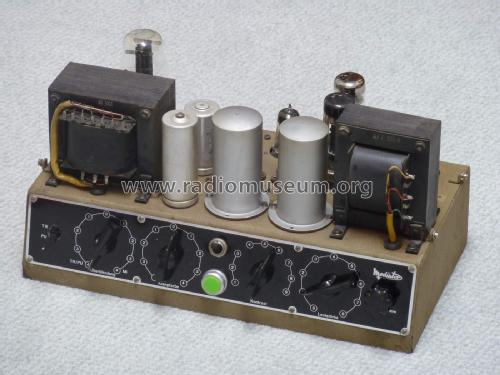

- Model: Mediator ZV3310 - Medialux AG; Zürich
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 350 x 200 x 180 mm / 13.8 x 7.9 x 7.1 inch
- Notes
-
Das Gerät basiert auf dem Philips Verstärker ZV3310 und wurde für die Schweiz ergänzt um einen Schaltungsteil zur Wiedergabe des NF-Telefonrundspruchs.
- Author
- Model page created by Adalbert Gebhart. See "Data change" for further contributors.
