• Country
• Switzerland

• Manufacturer / Brand
• Mediator; La Chaux-de-Fonds

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12363

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1 EM4

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

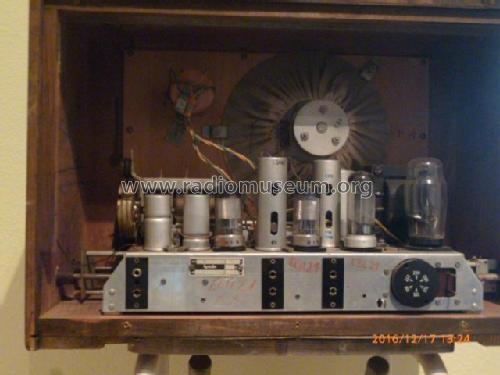

• Model: M149A - Mediator; La Chaux-de-Fonds

• Dimensions (WHD)
• 500 x 340 x 240 mm / 19.7 x 13.4 x 9.4 inch

• Notes
• Mit Telefonrundspruch= 620.-; deckbare Linearskala. Gehäuse ist aus Nussbaumholz. Ausführung mit Telefonrundspruch wurde für SFr. 620.- verkauft.

• Price in first year of sale
• 565.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.
