• Country
• Switzerland

• Manufacturer / Brand
• Mediator; La Chaux-de-Fonds

• Year
• 1944/1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12349

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH4 or ECH3 ECH21 EBL21 or EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

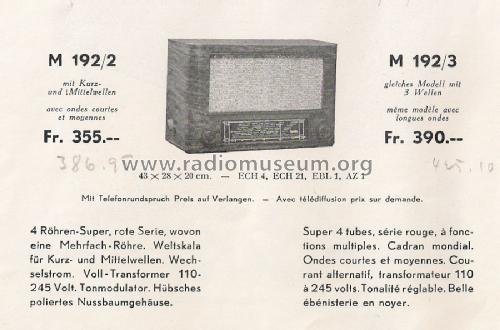

• Model: M192A-3 - Mediator; La Chaux-de-Fonds

• Dimensions (WHD)
• 430 x 280 x 200 mm / 16.9 x 11 x 7.9 inch

• Notes
• auch mit TR möglich

• Price in first year of sale
• 390.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 371 models, 325 with images and 225 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Mediator; La Chaux-de-Fonds
