- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12399
Rückwand mit PTT-Kontrollmarke
Rückansicht ohne Rückwand
Nach Austausch der Teerkondensatoren

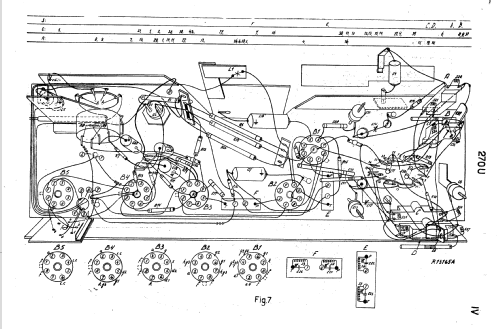

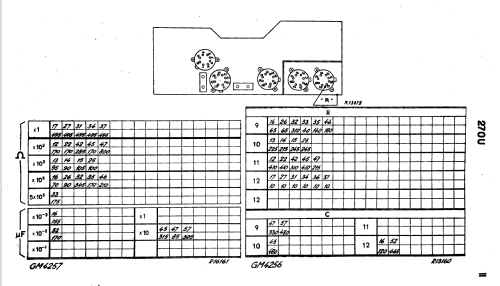

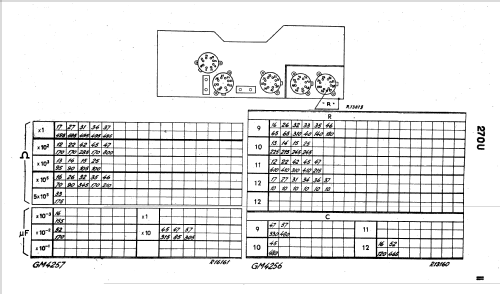

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
- Power out
- 4.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: M270U - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 170 x 125 mm / 10.6 x 6.7 x 4.9 inch
- Notes
-
Das Gerät verfügt über teilweise unübliche Wellenbereiche: Langwelle: 185 bis 580 m, Mittelwelle: 1150 bis 2000m und Kurzwelle: 13,8 bis 51m.
Die Technischen Unterlagen des Philips BX200U sind für dieses Gerät auch gültig.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Price in first year of sale
- 234.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die Tungsram-Tabellen führen das Modell auf.
