• Country
• Switzerland

• Manufacturer / Brand
• Mediator; La Chaux-de-Fonds

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12409

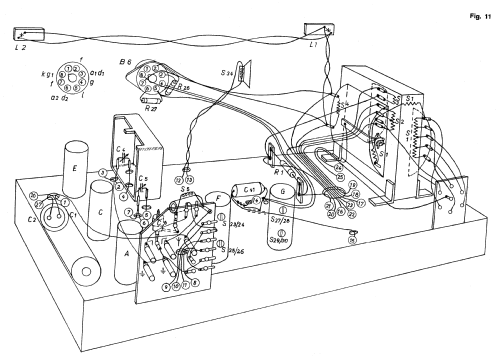

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

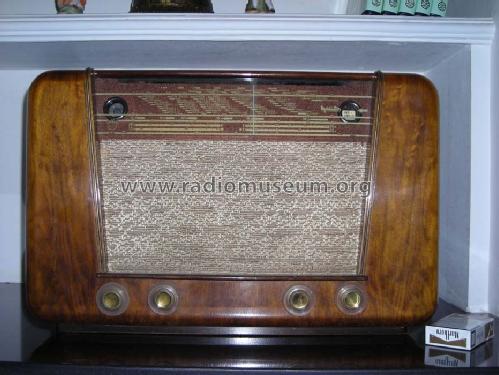

• Model: 359A - Mediator; La Chaux-de-Fonds

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 523 x 335 x 220 mm / 20.6 x 13.2 x 8.7 inch

• Notes
• auch ZF470/460! Service-Messpunkte an Antenneplatte. UKW vorbereitet. 3 x KW. Chassis zeigt Verwandtschaft zu BX400/500

• Price in first year of sale
• 425.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.

• Other Models

• Here you find 371 models, 325 with images and 225 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Mediator; La Chaux-de-Fonds
