M7A (M7, 7A, S7)

• Country
• Switzerland

• Manufacturer / Brand
• Mediator; La Chaux-de-Fonds

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12287

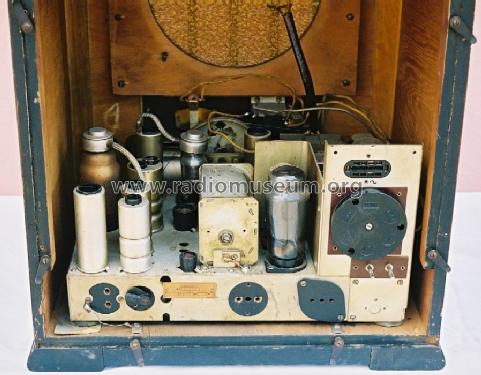

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: M7A - Mediator; La Chaux-de-Fonds

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 420 x 490 x 300 mm / 16.5 x 19.3 x 11.8 inch

• Notes
• var.BBr. [Ringiers U-B 9.1.37]; Unterschiede 7A, M7, S7 ??

• Price in first year of sale
• 415.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 371 models, 325 with images and 225 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
