• Country
• Switzerland

• Manufacturer / Brand
• Mediator; La Chaux-de-Fonds

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121920

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

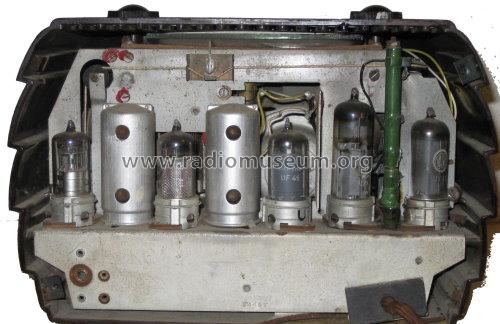

• UCH41 UAF41 UF41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110; 125; 145: 220 Volt

• Material
• Bakelite case

• from Radiomuseum.org

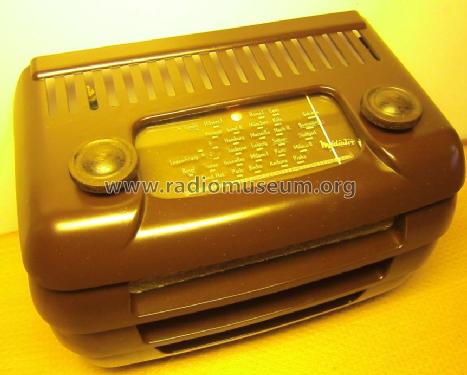

• Model: M88US - Mediator; La Chaux-de-Fonds

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 245 x 155 x 140 mm / 9.6 x 6.1 x 5.5 inch

• Notes
• Ähnlich zum Mediator Bambi M88U .

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• - - Data from my own collection
