MD1580U
Mediator; La Chaux-de-Fonds
- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112979

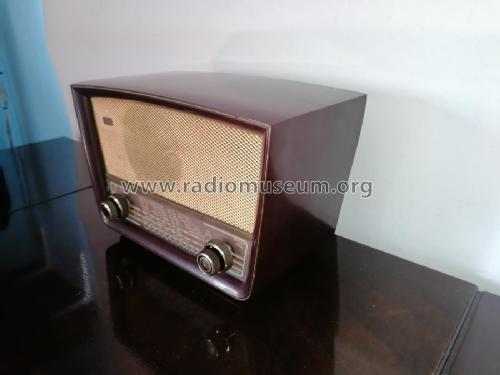

Foto de Francisco Martins
Foto de Francisco Martins
Foto de Francisco Martins
From a Portuguese Prospect.
Mediator Catalog
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
- Power out
- 3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: MD1580U - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 300 x 210 x 150 mm / 11.8 x 8.3 x 5.9 inch
- Notes
-
Rádio destinado para o mercado Português.
Quadrante completamente escrito em Português.
Wavebands: SW1 13.6 - 43.5 m, SW2 40.8 - 118 m, MW 186.4 - 580 m.
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Price in first year of sale
- 1,650.00 PTE
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
