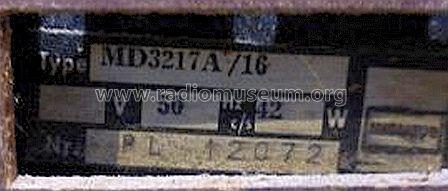

MD3217A /16
Mediator; La Chaux-de-Fonds
- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 305647
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 460 / 10700 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: MD3217A /16 - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 429 x 235 x 210 mm / 16.9 x 9.3 x 8.3 inch
- Notes
-
Lautsprecher: AD3460M 4" x 6", 5 Ω
- Author
- Model page created by Egon Strampe. See "Data change" for further contributors.
