MD3529A
Mediator; La Chaux-de-Fonds
- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1955/1956 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81441

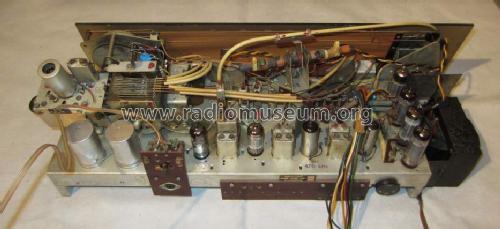

Sperrmüll-Fund 5.7.05 leider ohne Gehäuse
Click on the schematic thumbnail to request the schematic as a free document.

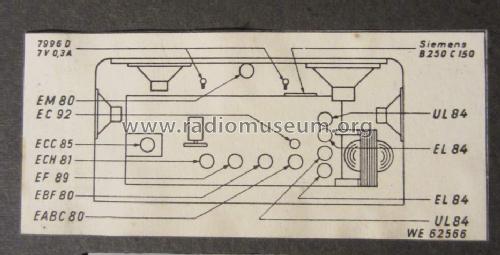

- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: MD3529A - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel with Push Buttons.
- Notes
- Siehe auch Philips Capella BD753A/4E/3D.
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Peter Steffen. See "Data change" for further contributors.
