MD4528A / 16
Mediator; La Chaux-de-Fonds
- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1953/1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12425

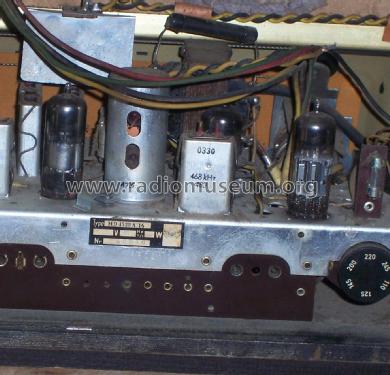

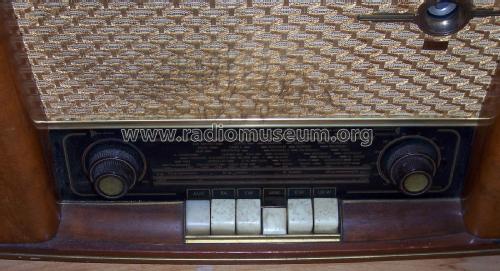

By courtesy of Benjamin Arnold, Switzerland.
By courtesy of Benjamin Arnold, Switzerland
By courtesy of Benjamin Arnold, Switzerland.
By courtesy of Benjamin Arnold, Switzerland.
By courtesy of Benjamin Arnold, Switzerland.
By courtesy of Benjamin Arnold, Switzerland.
By courtesy of Benjamin Arnold, Switzerland.

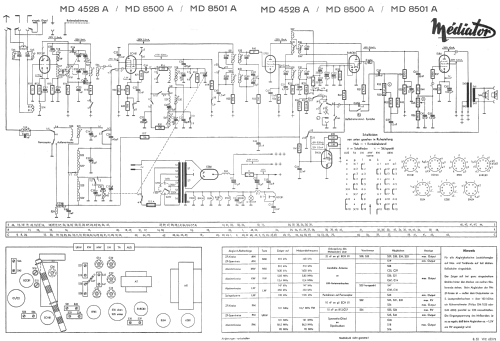

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 145, 200, 220, 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: MD4528A / 16 - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 525 x 335 x 230 mm / 20.7 x 13.2 x 9.1 inch
- Price in first year of sale
- 415.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
