• Country
• Switzerland

• Manufacturer / Brand
• Mediator; La Chaux-de-Fonds

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201314

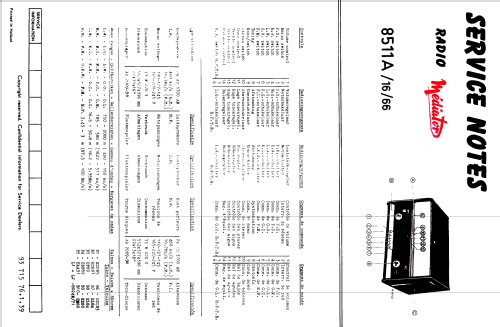

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 13.5 cm = 5.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: MD8511 A-16 - Mediator; La Chaux-de-Fonds

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 320 x 395 mm / 22.4 x 12.6 x 15.6 inch

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Firmino A. Ferreira Mendes Leal. See "Data change" for further contributors.

• Other Models

• Here you find 371 models, 325 with images and 225 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Mediator; La Chaux-de-Fonds
