• Country
• Switzerland

• Manufacturer / Brand
• Mediator; La Chaux-de-Fonds

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180474

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; Export model

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker

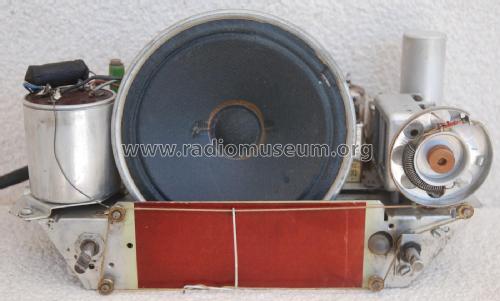

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: MD1557U /62 - Mediator; La Chaux-de-Fonds

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 175 x 140 mm / 10.6 x 6.9 x 5.5 inch

• Notes

• Wavebands: SW 16.7 - 63.2 m, MW 185 - 580 m.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Price in first year of sale
• 1,495.00 PTE

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Antonio Dias Rodrigues. See "Data change" for further contributors.

• Other Models

• Here you find 371 models, 325 with images and 225 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
