• Country
• Switzerland

• Manufacturer / Brand
• Mediator; La Chaux-de-Fonds

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222900

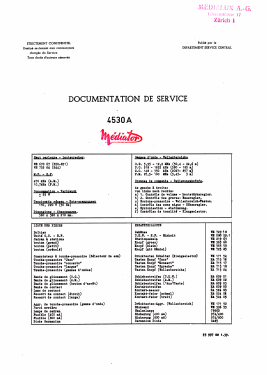

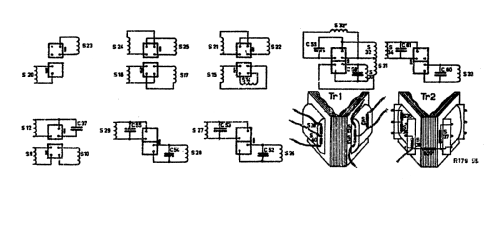

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

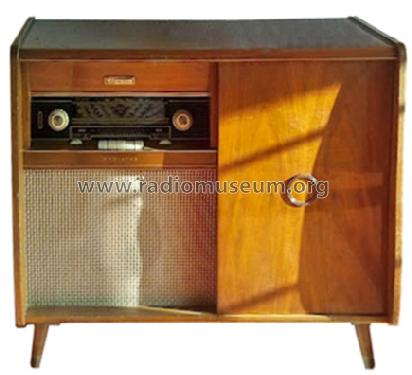

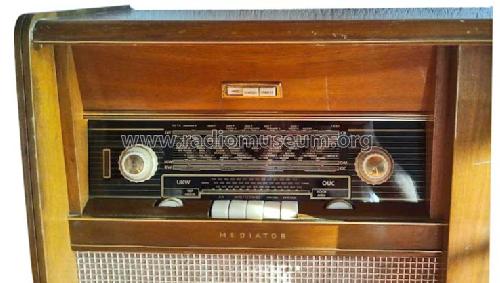

• Model: Radioschrank MD4530A - Mediator; La Chaux-de-Fonds

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• Radioteil vom Mediator MD4530A.
  Chassis wie im Philips BD483A.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
