Z 21B-33 Ch= Philips 629B-19
Mediator; La Chaux-de-Fonds
- Country
- Switzerland
- Manufacturer / Brand
- Mediator; La Chaux-de-Fonds
- Year
- 1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200787
Bild aus dem Service Manual

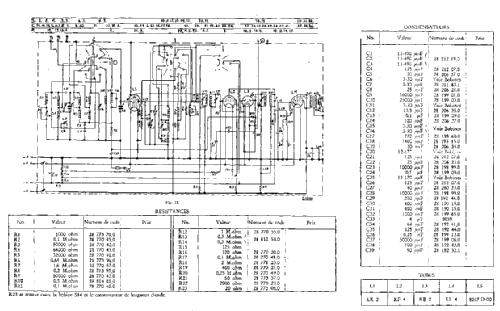

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 135 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Z 21B-33 Ch= Philips 629B-19 - Mediator; La Chaux-de-Fonds
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Radio chassis: Philips 629B-19
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
