- Country
- United States of America (USA)
- Manufacturer / Brand
- Meissner Mfg. Div., Maguire Industries, Inc. (IL)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 46965
SAMS Photofact
Beautiful Mahogany cabinet
Trim is gold embossed leather

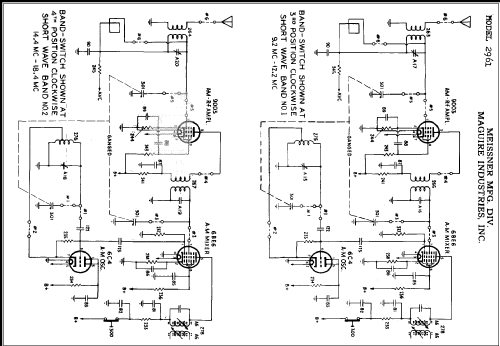

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 9003 6BE6 6C4 9003 6U5 or 6G5 9003 9002 6AG5 6AL5 9003 6AG5 6AG5 6C4 6AG5 6AG5 6AG5 9001 9001 6AL5
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 inch = 38.1 cm
- Power out
- 20 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2961 - Meissner Mfg. Div., Maguire
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- additional tubes: 2 x 9002, 6J5GT, 6SN7GT, 4 x 6L6GA, 5Y3G, 5V4G.
Record Changer: Webster Model 70.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (4)

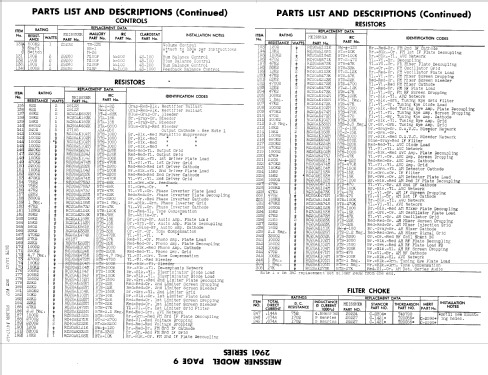

- Photofact Folder, Howard W. SAMS (Set 27, Date 10/47, Folder 4717-19)
