• Country
• United States of America (USA)

• Manufacturer / Brand
• Meissner Mfg. Div., Maguire Industries, Inc. (IL)

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46956

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SK7 6SJ7 6H6 6U5 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 4300 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC)

• Material
• Wooden case

• from Radiomuseum.org

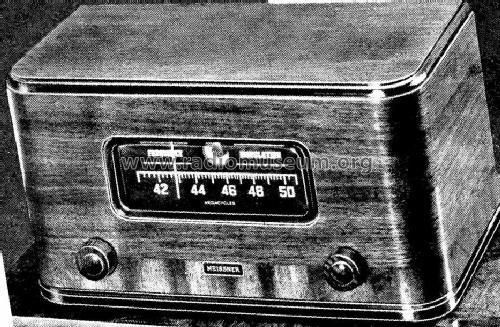

• Model: FM Converter 9-1047A - Meissner Mfg. Div., Maguire

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 13 x 7 x 6.75 inch / 330 x 178 x 171 mm

• Notes

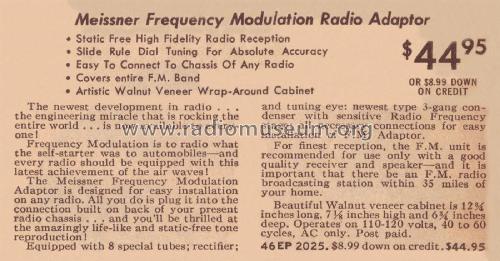

• This model also was distributed by Spiegel as model EP2025.

  Frequency range 41.2 - 50.4 MHz.

• Price in first year of sale
• 44.95 $

• External source of data
• Ernst Erb

• Circuit diagram reference

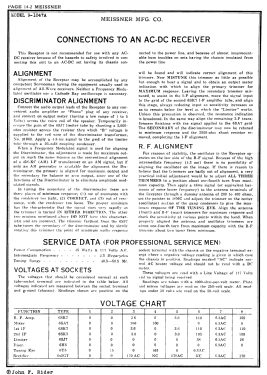

• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• Radio Retailing (Radio & Television R.) (October 1941 page 19.)

• Literature/Schematics (1)
• Spiegel Catalogs (Aircastle) (Spring/Summer 1942, No. 153, page 415.)

• Other Models

• Here you find 74 models, 57 with images and 41 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Meissner Mfg. Div., Maguire Industries, Inc. (IL)
