• Country
• United States of America (USA)

• Manufacturer / Brand
• Meissner Mfg. Div., Maguire Industries, Inc. (IL)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46959

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 cm = 4.5 inch

• Material
• Bakelite case

• from Radiomuseum.org

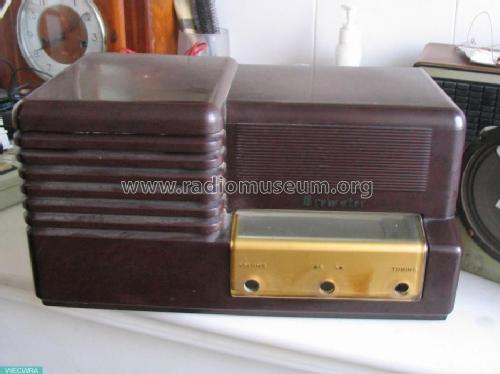

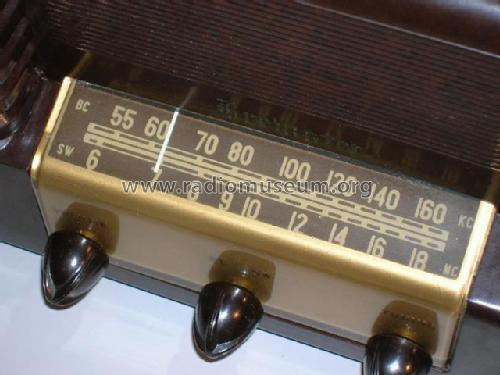

• Model: Brewster 9-1084 - Meissner Mfg. Div., Maguire

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 328 x 170 x 180 mm / 12.9 x 6.7 x 7.1 inch

• Notes
• Dial lamp: Bayonet ref.47 (6,3V 0,15A)
  Photofact see under Trade name: Brewster.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 2, Folder 462-13)
