• Country
• United States of America (USA)

• Manufacturer / Brand
• Meissner Mfg. Div., Maguire Industries, Inc. (IL)

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46978

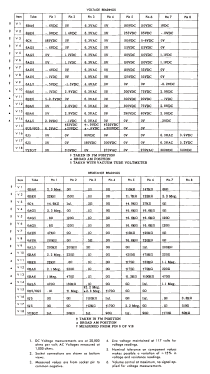

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6BA6 6BE6 6C4 6AG5 6AG5 6AG5 6AU6 6AU6 6AL5 6BA6 6BE6 6BA6 6BA6 6AL5 6U5 or 6G5 6J5 6J5 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 105 -125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

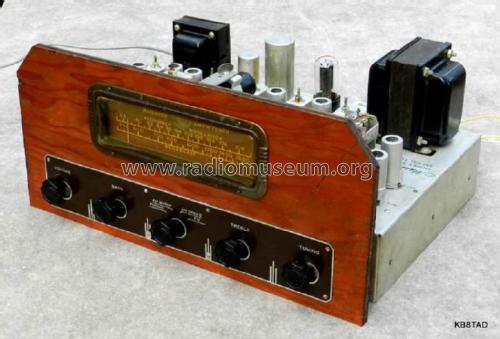

• Model: 9-1091C FM-AM Tuner - Meissner Mfg. Div., Maguire

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 16.5 x 10.2 x 0 inch / 419 x 259 x 0 mm

• Notes

• Meissner model 9-1091C is an AC operated AM-FM tuner.



• Price in first year of sale
• 201.00 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Literature/Schematics (1)
• 1951 Newark catalog Nº 51

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 116, Folder 8 dated 12-50)

• Other Models

• Here you find 74 models, 57 with images and 41 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
