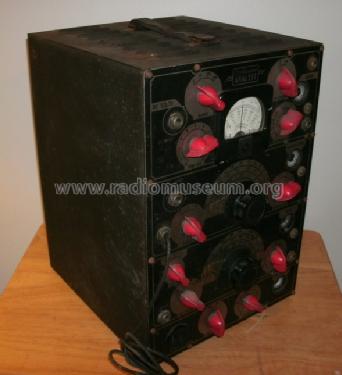

Analyst 9-1040

Meissner Mfg. Div., Maguire Industries, Inc. (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1941 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 237135

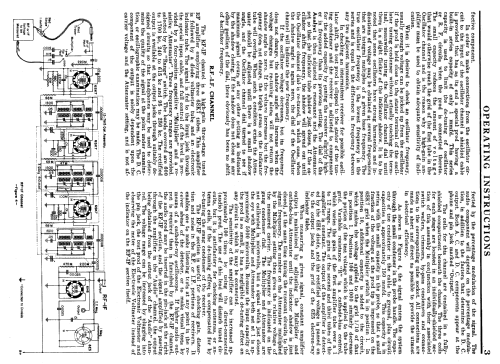

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Main principle
  • Audio-Amplification
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Analyst 9-1040 - Meissner Mfg. Div., Maguire
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 9.5 x 13.5 x 10.5 inch / 241 x 343 x 267 mm

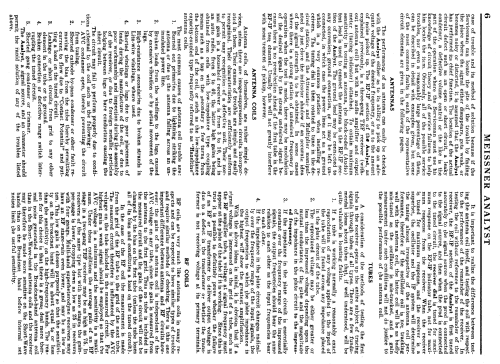

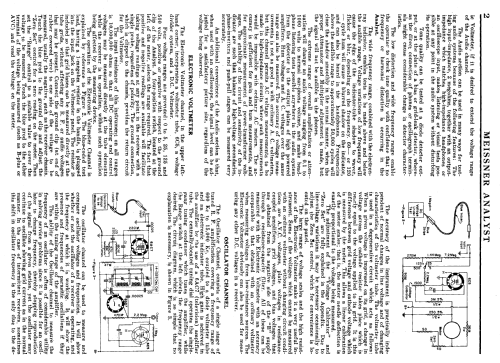

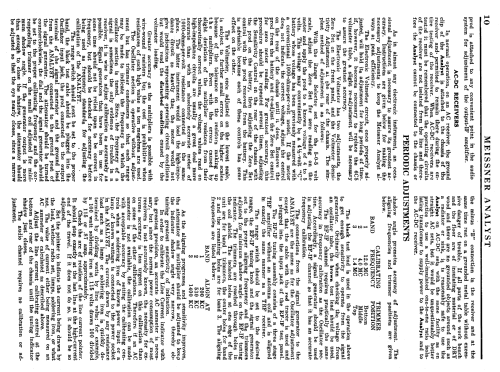

  • Notes

  • The Service Instruments incorporated in the Meissner Analyst 9-1040 are as follows:

    1. An audio amplifier with phone-jack output for the headphones to be used for listening to any audio voltage in the radio set with an additional audio voltmeter of 2 megohms impedance (range: 0.1 to 1000 volts).
    2. A DC voltmeter with a resistance of 10 megohms covering the range 0 to 500 volts, either positive or negative.
    3. A frequency meter to check the oscillator frequency, a vacuum tube voltmeter covering the range .05 to 50 volts and indicating frequency from 600 kc to 15 Mc.
    4. A TRF tuner with phone jack output connections for a head set  to be used for listening to the quality of an RF or IF signal, a vacuum tube voltmeter covering the range 50 micro-volts to 50 volts and indicating frequency between 100 kc and 1700 kc.
    5. A line current ammeter.
  • Price in first year of sale
  • 87.50 USD
  • Author
  • Model page created by Mark Skala. See "Data change" for further contributors.
